Rechargeable Magnifier R20SC

Mini portable document checking device, R20 series Magnifier, is an expert class viewing detector.

It is designed for visual authenticity, control of banknotes, securities, documents, tickets, duty stamps and special marks.

1.    Model:

1) R20S: with 12V 23AE Battery ONLY

      UV, white, side light, 10X magnifier, 7 lights

     2 UVA LEDs 365nm; 5 White LEDs, from 4 different angles.

2) R20SC,  with Lithium chargeable battery 500mAH.

*The dry battery 23AE 12V, can also be used in model R20SC, together with the chargeable Lithium battery at the same time.

    UV, white, side light, 10X magnifier, 6 lights

    2 UVA LEDs 365nm; 4 White LEDs, from 3 different angles.

 The approximate angles are as below:

 0 degree, 1 pc

 45 degree, 1 pc

 60 degree, 2 pcs

3) R20C, with 980nm laser, designed as per requirement of special market.

2.  Features:

1) Microprinting: 10X magnification; Water mark and UV features, intaglio printing, iridescent coating checking

2) Easy switching between various light types makes the quick counterfeit detection possible

3) Special material of magnifier surface makes your work more comfortable

3. Packaging Items

ü R20SC device

ü User’s Manual

ü Charging Cable (optional for chargeable model R20SC )

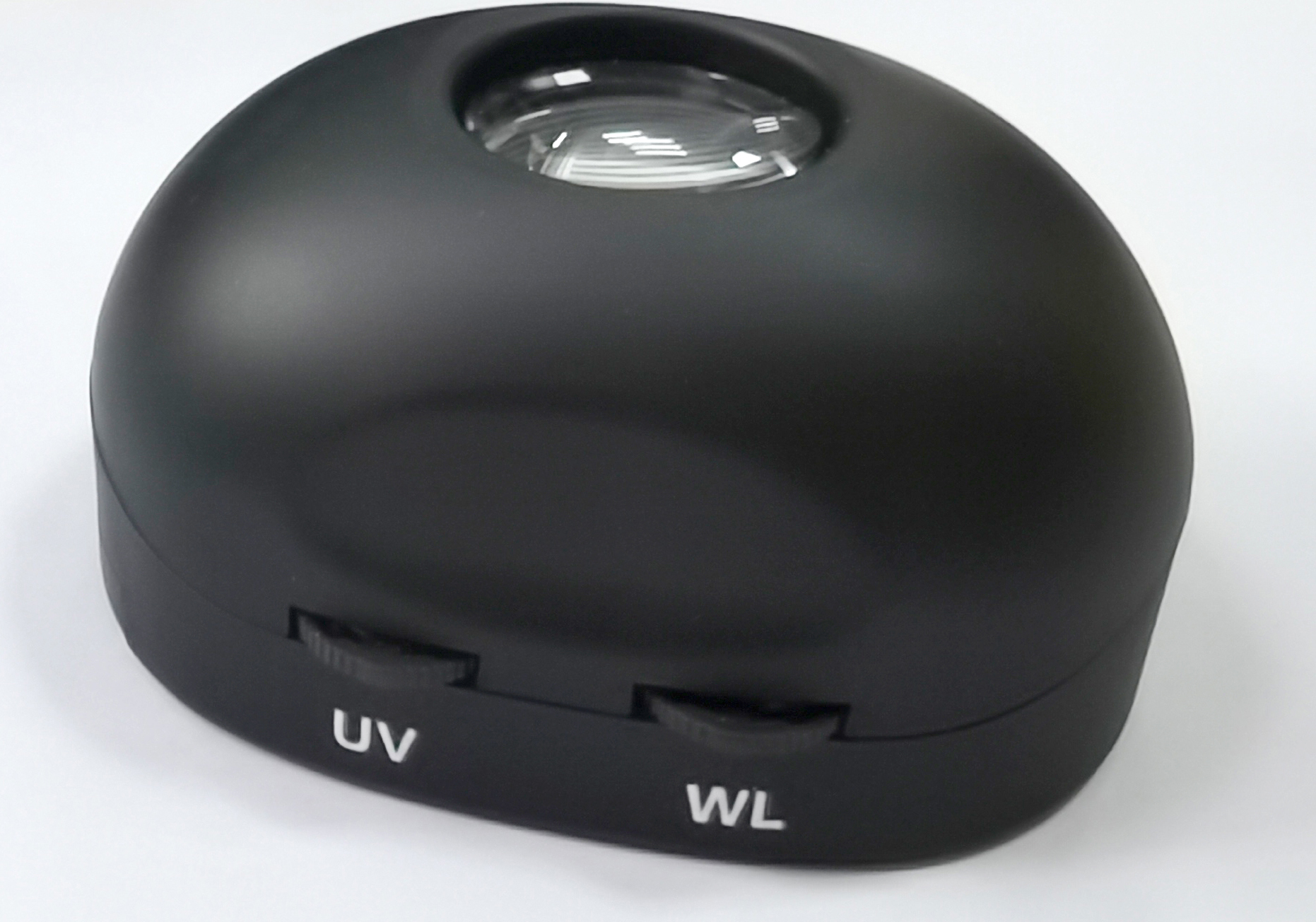

4、Control buttons

UV button,  UVA, 365nm

WL button,  White Lights

5. Operation

1) For standard model R20S, the dry battery 23AE 12V is used. Place the battery into battery installation slot proerly. Match the “+” and “-“.

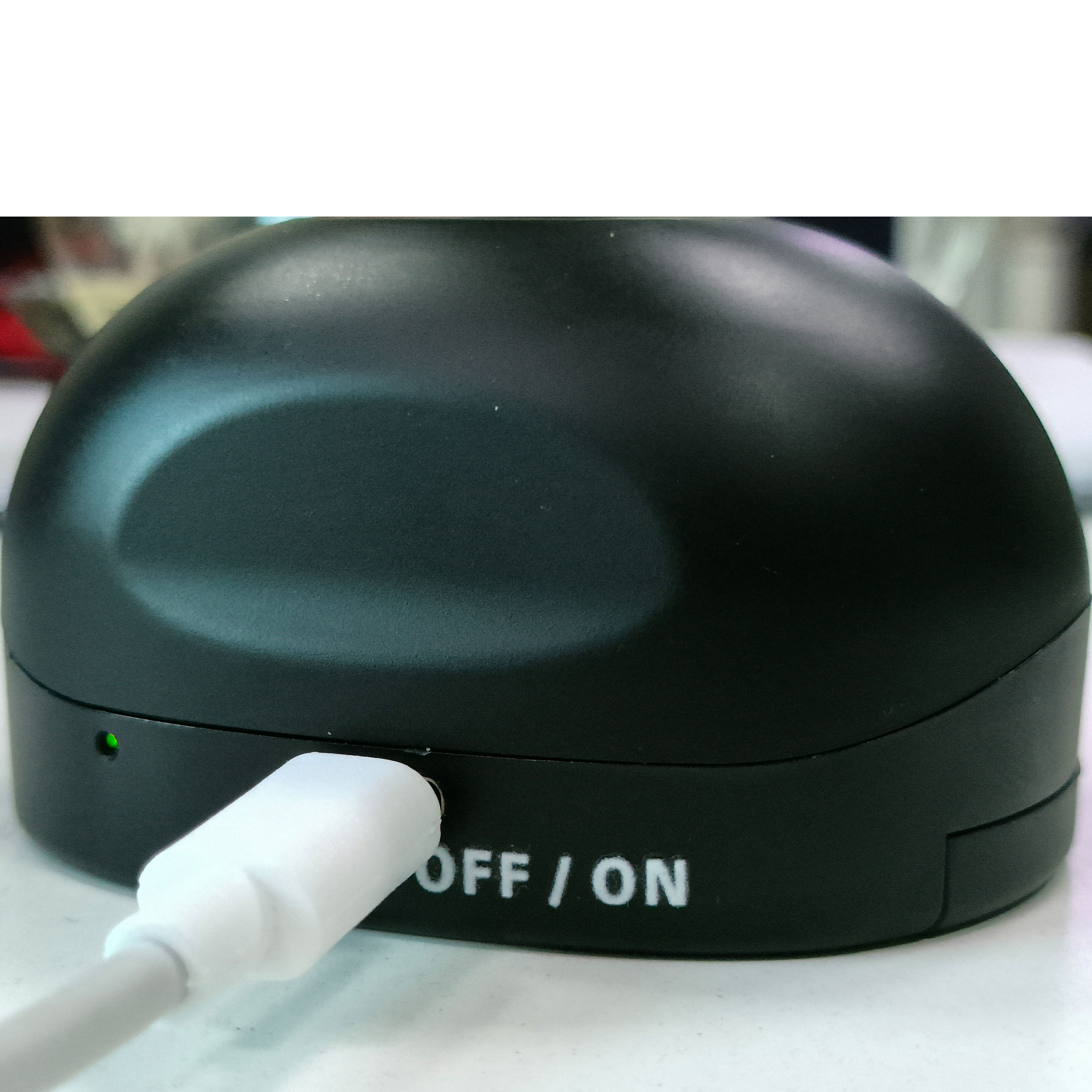

2) For Chargeable model R20SC: When you receive the cargo for the first time, just use it without charging. Charging is only necessary when you feel the brightness of the light is not strong enough. When the charging is done, the red instruction light will turn into green.

*The dry battery 23AE 12V, can also be used in model R20SC, together with the chargeable Lithium battery at the same time.

3) Attention! If you do not use the device for a long time, remove the dry battery 23AE 12V.

6. Transportation and storage

1) It's necessary to transport and store equipment in its package, avoiding shocks and dropping.

2) During transportation (not longer than 1 week) the temperature should be within the range-40℃ to +40℃.

3) During storage in heated place, the temperature should be within the range +1℃ to +40℃. And the relative humidity max.80%.

7. Specification

1) Light sources: white lights + 2 UVA 365nm

2) Lens:   Φ24mm,  10x magnification

3) Dimensions: H42x D55x W75mm

4) Weight: 50 g

5) Dry Battery Model: 23AE 12V

6) Chargeable Lithium Battery: 500mAH
